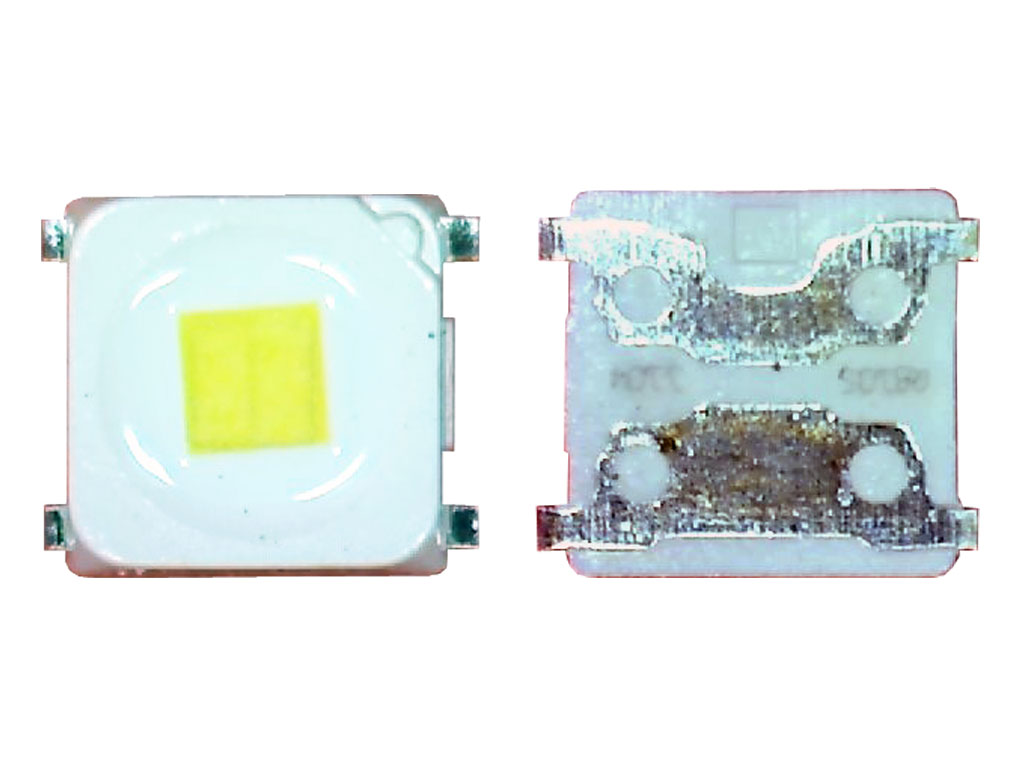

LED podsvit samostatná dioda 3228 3V Samsung

LED podsvit samostatná dioda 3228 3V Samsung
3,2 x 2,8 x 0,8 mm TT321A 1,5W

MODEL NAME: SPBWH1320S1EVC1BIB

velká ploška -

Manufacturer: SAMSUNG

Forward Current (IF): 570mA
Pulse Forward Curren t1 (IFp): mA
Reverse Current (IR): uA
Reverse Voltage (VR): 0.7-1.2V (5mA)
Power Dissipation (PD): W
Operatin Tgemperature (Topr): -40 +85C°
Storage Temperature (Tstg): -40 - +100 C°
Soldering Temperature (Tsld): Reflow Soldering: 265 °C for 10secs
Hand Soldering: 350 °C for 3secs
Junctio Tnemperature (Tj ): 140°C
Forward Voltage (VF): 3.3-3.9V (400mA)
Luminous Flux (IV): 30.81-36.79CD (400mA)
Wavelength (nm): 438-448nm (400mA)
Emissions-farbe Color of Emission :
Color Correlated Temperature (CCT): K
CRI: 80°
Viewing angle: 120°
