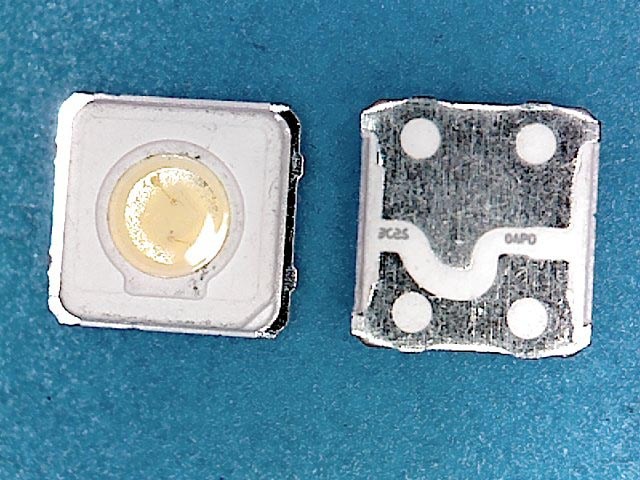

LED podsvit samostatná dioda 3537 / 3535 1W 3V Samsung

LED podsvit samostatná dioda 3537 / 3535 1W 3V Samsung
3,5 x 3,5 x 0,8mm 1,0W 3,0V

MODEL NAME: SPBWH1332S1BVC1BIB

Manufacturer: SAMSUNG

Forward Current (IF): 350mA
Pulse Forward Curren t1 (IFp): 500mA
Reverse Current (IR): 25mA
Reverse Voltage (VR): 5V (5mA)
Power Dissipation (PD): 1.25W
Operatin Tgemperature (Topr): -30 - +85 ° C
Storage Temperature (Tstg): -40 - +85 ° C
Soldering Temperature (Tsld):
Reflow Soldering: 260 °C for 10secs
Hand Soldering: 350 °C for 3secs
Junctio Tnemperature (Tj ): 125 °C
Forward Voltage (VF): 3.0-3.6V (350mA)
Luminous Flux (LM): 100-110lm (350mA)
Luminous Intensity ( IV ): cd (350mA)
Wavelength (nm): -nm mA
CIE: x=0.270 y=0.240 (350mA)
Color Correlated Temperature (CCT):
CRI: °
Viewing angle : 120°
