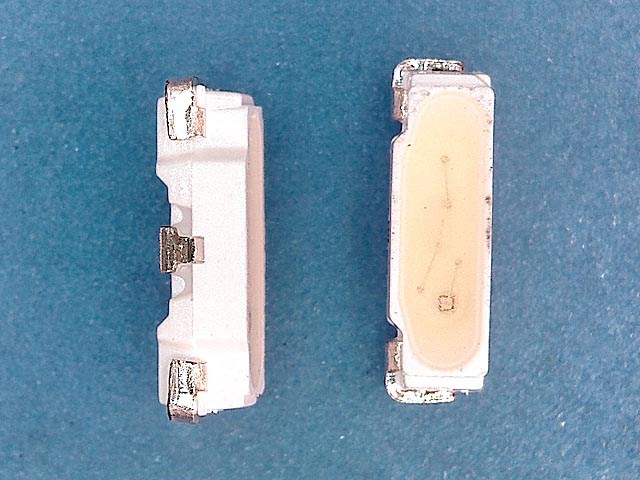

LED podsvit samostatná dioda 3806 3V 020 MSL-511FZW

LED podsvit samostatná dioda 3806 3V 020 MSL-511FZW
3,8 x 0,6 x 1,8 mm 123mW

MODEL NAME: MSL-511FZW LED

Manufacturer: UNI

Forward Current (IF ): 35mA
Pulse Forward Curren t1 (IFp): 100mA
Reverse Current (IR): 50uA
Reverse Voltage (VR): 5V (mA)
Power Dissipation (PD): 123mW
Operatin Tgemperature (Topr): -30 - +85 °C
Storage Temperature (Tstg): -40 - +100 °C
Soldering Temperature (Tsld): Reflow Soldering:260 °C for 10secs
Hand Soldering: 350 °C for 3secs
Junctio Tnemperature (Tj ): 110°C
Forward Voltage (VF): 3.20-3.30V(20mA)
Luminous Flux (LM): lm (20mA)
Luminous Intensity ( IV ) : 1850-1900mcd (20mA)

CRI : 80°
Viewing angle : 120°
Lead Frame Type LED Package: 3.8×0.6×1.80 mm L×W×H d=1.9mm
