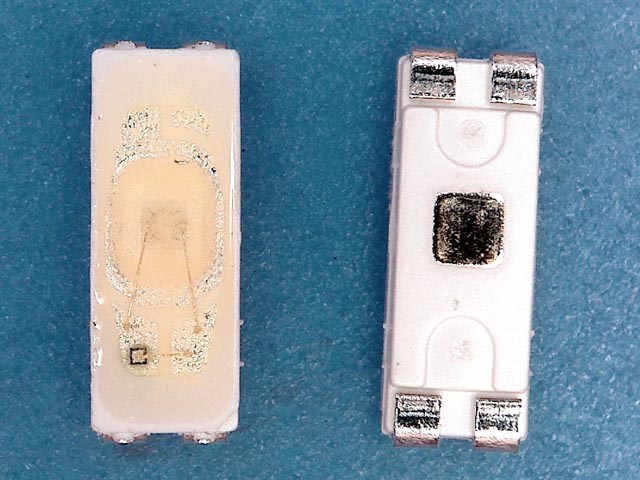

LED podsvit samostatná dioda 4014 3V 0,2W Lextar

LED podsvit samostatná dioda 4014 3V 0,2W Lextar
4x1,2x0,6mm 0,2W 15Lm

MODEL NAME : PT40Z01 V1

Manufacturer : Lextar
Forward Current (IF ): 60mA
Pulse Forward Curren t1 (IFp): 100mA
Reverse Current (IR): 50uA
Reverse Voltage (VR): 5V
Power Dissipation (PD): 0.2W
Operatin Tgemperature (Topr): -30 - +85°C
Storage Temperature (Tstg): -40 - +100°C
Soldering Temperature (Tsld): Reflow Soldering:260°C for 10secs
Hand Soldering:350°C for 3secs
Junction Temperature (Tj ): 110°C
Forward Voltage (VF): 2.8-3.6V (60mA)
Luminous Flux (LM): 12.5-17.5lm (60mA)
CRI : 80
Viewing angle : 125°
Lead Frame Type LED Package: 4.0×1.4×0.6 mm L×W×H d=mm
