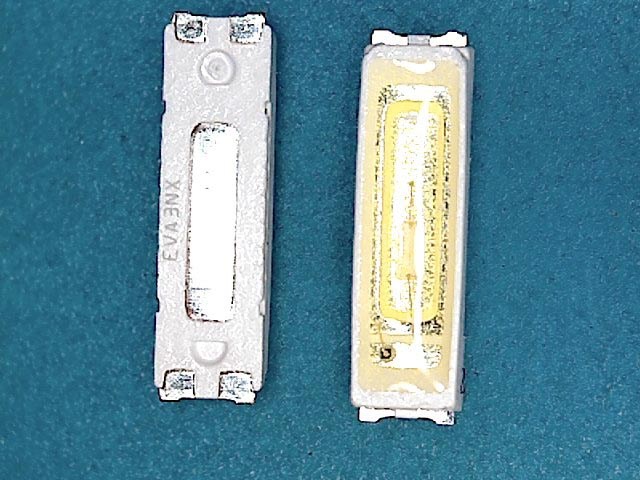

LED podsvit samostatná dioda 7020 0.5W 3V Seoul

LED podsvit samostatná dioda 7020 0.5W 3V Seoul
7,0 x 2,0 x 0,8mm 0,5W 3,0V

MODEL NAME : STHBI141E-B 7020 LED

Manufacturer : SEOUL

Forward Current (IF): 180mA
Pulse Forward Curren t1 (IFp): 500mA
Reverse Current (IR): 2A
Reverse Voltage (VR): 0.7-1.2V (5mA)
Power Dissipation (PD): 0.684W
Operatin Tgemperature (Topr): -30 +85C°
Storage Temperature (Tstg): -40 - +100 C°
Soldering Temperature (Tsld):
Reflow Soldering: 260 °C for 10secs
Hand Soldering: 350 °C for 3secs
Junctio Tnemperature (Tj ): 110 °C
Forward Voltage (VF): 2.8-3.6V (120mA)
Luminous Flux (CD): 11cd(120mA)
Wavelength (nm): -nm (120mA)
Emissions-farbe Color of Emission:
CIE: X=0.260 Y=0.240 (120mA)
Color Correlated Temperature (CCT): K
CRI: 80°
Viewing angle : 120°
