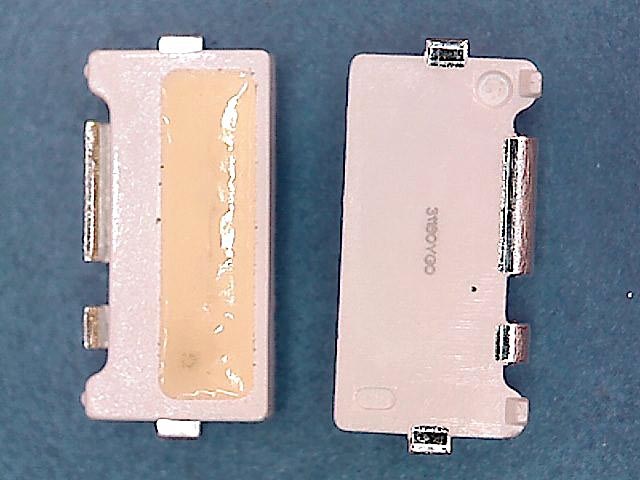

LED podsvit samostatná dioda 7032 6V Samsung

LED podsvit samostatná dioda 7032 6V Samsung
7,0 x 3,2 x 1,3mm 6,0V

MODEL NAME : SPBWH1732S2LVD1BIB 7032 LED

Manufacturer : SAMSANG

Forward Current (IF): 180mA
Pulse Forward Curren t1 (IFp): mA
Reverse Current (IR): uA
Reverse Voltage (VR): 0.7-1.2V (5mA)
Power Dissipation (PD): W
Operatin Tgemperature (Topr): -40 +85C°
Storage Temperature (Tstg): -40 - +100 C°
Soldering Temperature (Tsld):
Reflow Soldering: 260 °C for 10secs
Hand Soldering: 350 °C for 3secs
Junctio Tnemperature (Tj): °C
Forward Voltage (VF): 5.9-6.5V (120mA)
Luminous Flux (MCD): 19470-27330MCD(120mA)
Wavelength (nm): 443-451nm (120mA)
Emissions-farbe Color of Emission :
Color Correlated Temperature (CCT): K
CRI: 80°
Viewing angle: 120°
